Tổ máy phát điện bộ 50Hz

TỔ MÁY PHÁT ĐIỆN BAUDOUIN

Dễ dàng lắp đặt, vận hành và bảo dưỡng

Tiết kiệm nhiên liệu, chi phí vận hành và bảo trì thấp

Công nghệ hiện hành, dễ vận hành, sửa chữa

Động cơ của Pháp, sản xuất theo công nghệ tiên tiến nhất hiện nay

Công suất

18KVA - 2000KVA

Động cơ

BAUDOUIN (FRANCE)

Bảng điều khiển

Deepsea

Thông số tiêu chuẩn

3 phase, 4 wire, 50Hz, 1500Rpm, 380V-400V, chạy dầu Diesel

>>> Baudouin full range series 18kva-2000kva





Baudouin

Gen-set

Prime Rating

Standby Rating

Baudouin Engine

Cylinder

Displacement

Voltage

Fre quency

Governor

Model

KVA

KW

KVA

KW

Model

No.

L

V

Hz

Type

B20D5

18

14,4

20

16

4M06G20/5

4L

2.3

230 / 400

50

E

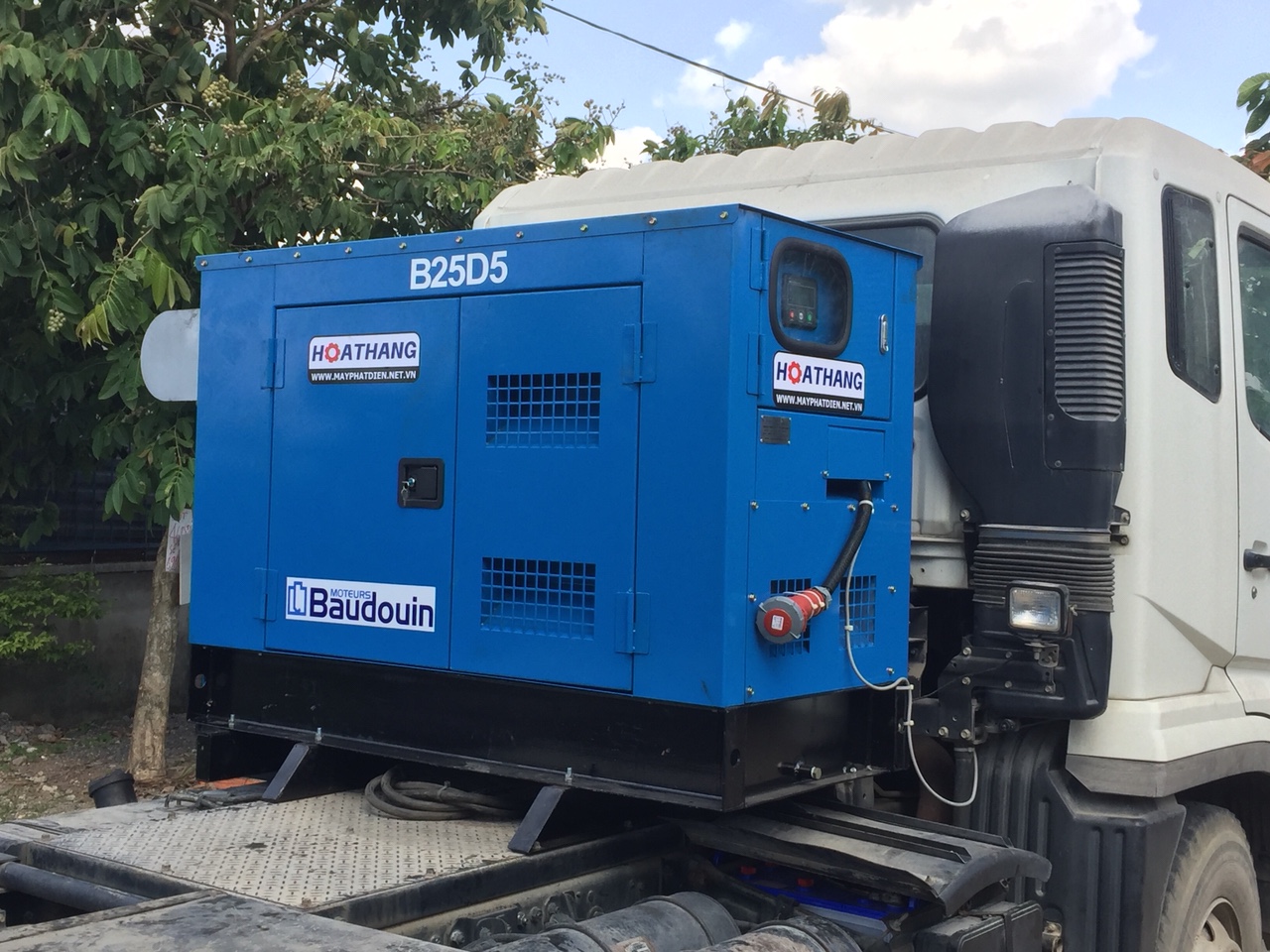

B25D5

22,5

18

25

20

4M06G25/5

4L

2.3

230 / 400

50

E

B35D5

31,3

25

35

28

4M06G35/5

4L

2.3

230 / 400

50

E

B45D5

40

32

45

36

4M06G44/5

4L

2.3

230 / 400

50

E

B50D5

45

36

50

40

4M06G50/5

4L

2.3

230 / 400

50

E

B55D5

50

40

55

44

4M06G55/5

4L

2.3

230 / 400

50

ECU

B66D5

60

48

66

52,8

4 M11G70/5

4L

4.5

230 / 400

50

E

B88D5

80

64

88

70

4 M11G90/5

4L

4.5

230 / 400

50

E

B110D5

100

80

110

88

4 M11G120/5

4L

4.5

230 / 400

50

E

B125D5

113

90

125

100

4 M11G120/5

4L

4.5

230 / 400

50

E

B150D5

135

108

150

120

6 M11G150/5

6L

6.75

230 / 400

50

E

B165D5

150

120

165

132

6 M11G165/5

6L

6.75

230 / 400

50

E

B220D5

200

160

220

176

6 M16G220/5

6L

9.726

230 / 400

50

E

B250D5

225

180

250

200

6 M16G250/5

6L

9.726

230 / 400

50

E

B275D5

250

200

275

220

6 M16G275/5

6L

9.726

230 / 400

50

E

B330D5

300

240

330

264

6 M16G350/5

6L

9.726

230 / 400

50

E

B350D5

313

250

350

280

6 M16G350/5

6L

9.726

230 / 400

50

E

B385D5

350

280

385

308

6 M21G385/5

6L

12.54

230 / 400

50

E

B400D5

363

290

400

320

6 M21G385/5

6L

12.54

230 / 400

50

E

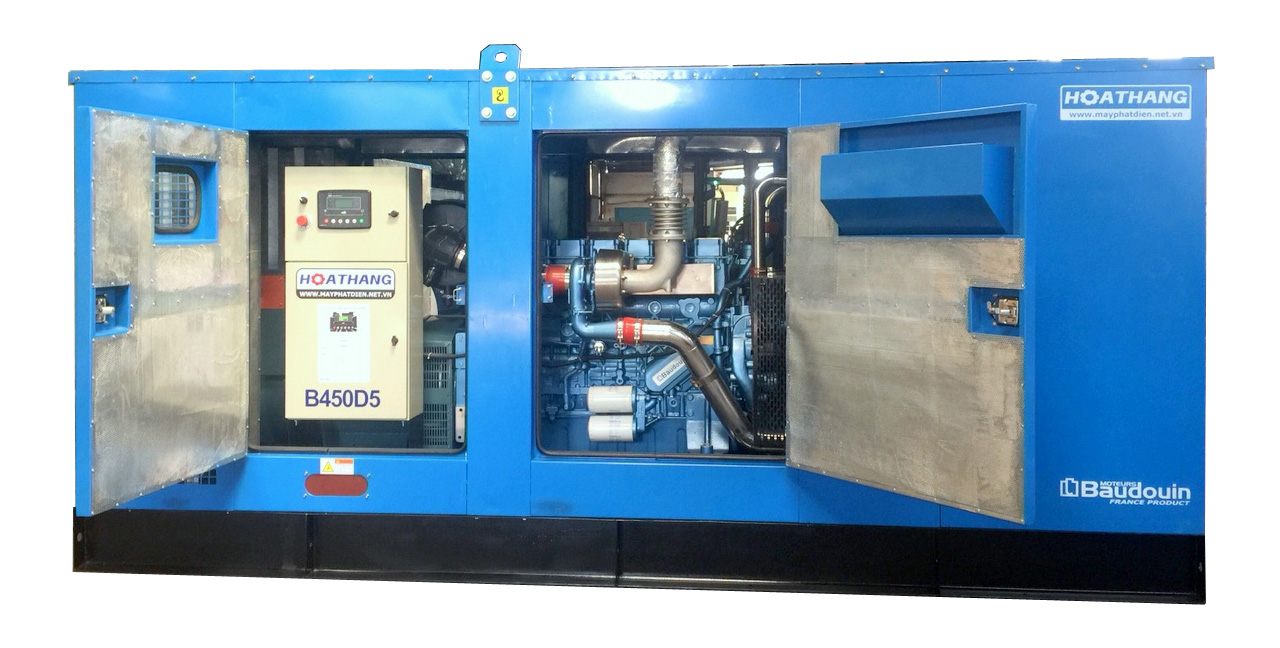

B450D5

400

320

450

360

6 M21G440/5

6L

12.54

230 / 400

50

E

B500D5

450

360

500

400

6M21G500/5

6L

12.54

230 / 400

50

ECU

B500D5E

450

360

500

400

6 M26G500/5

6L

15.90

230 / 400

50

E

B550D5

500

400

550

440

6 M26G550/5

6L

15.90

230 / 400

50

E

B660D5

600

480

660

528

6 M33G660/5

6L

19,60

230 / 400

50

E

B715D5

650

520

715

572

6 M33G715/5

6L

19,60

230 / 400

50

E

B750D5

680

544

750

600

6 M33G750/5

6L

19,60

230 / 400

50

E

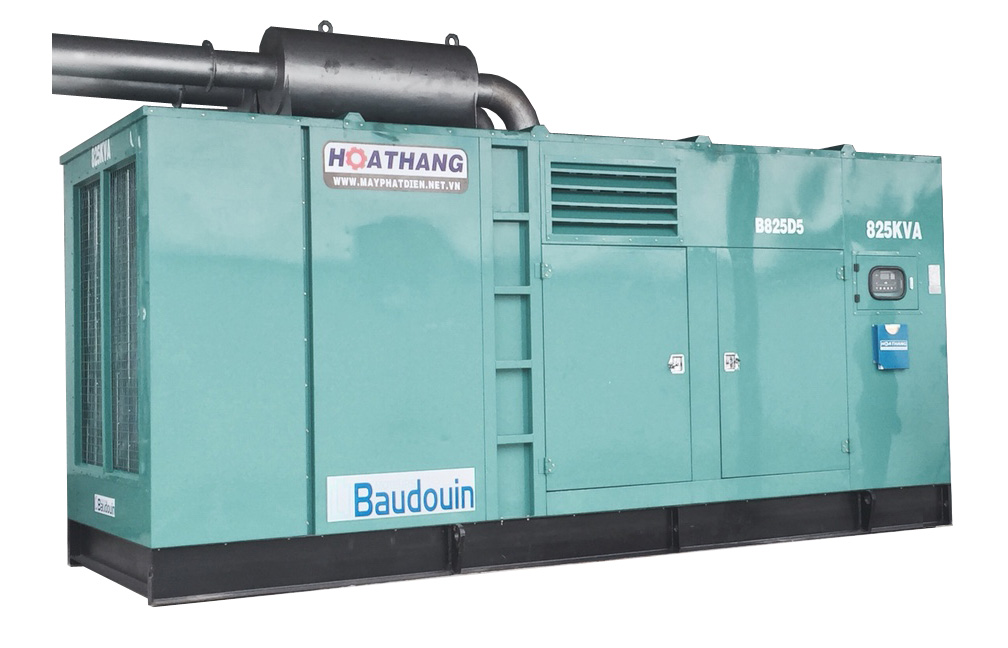

B825D5

750

600

825

660

6M33G825/5

6L

19,60

230 / 400

50

ECU

B825D5E

750

600

825

660

12 M26G825/5

12V

31.80

230 / 400

50

E

B900D5

800

640

900

720

12 M26G900/5

12V

31.80

230 / 400

50

E

B1000D5

900

720

1000

800

12 M26G1000/5

12V

31.80

230 / 400

50

E

B1100D5

1000

800

1100

880

12 M26G1100/5

12V

31.80

230 / 400

50

E

B1250D5

1125

900

1250

1000

12 M33G1250/5

12V

39.20

230 / 400

50

E

B1400D5

1250

1000

1400

1120

12 M33G1400/5

12V

39.20

230 / 400

50

E

B1500D5

1375

1100

1500

1200

12 M33G1500/5

12V

39.20

230 / 400

50

E

B1700D5

1500

1200

1700

1360

16M33G1700/5

16V

52.27

230 / 400

50

ECU

B1900D5

1700

1360

1900

1520

16M33G1900/5

16V

52.27

230 / 400

50

ECU

B2000D5

1830

1464

2000

1600

16M33G2000/5

16V

52.27

230 / 400

50

ECU
